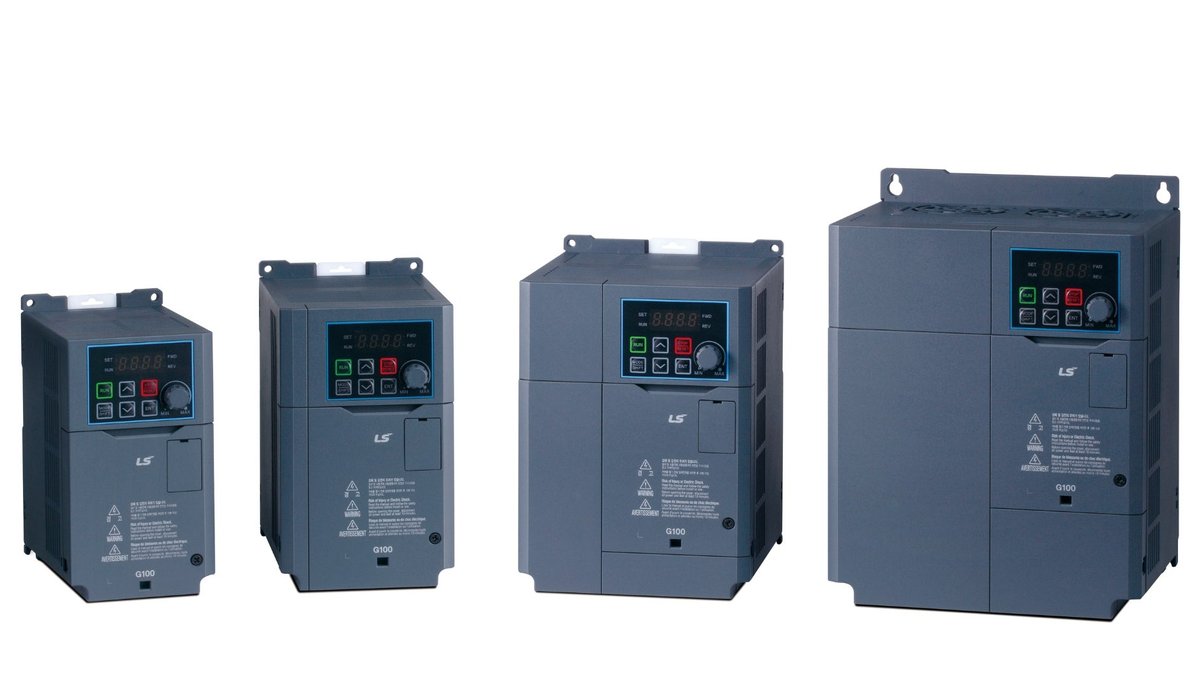

LS ELECTRIC America is highlighting its G100 General AC Drive, a compact variable frequency drive designed to provide flexible motor control across a range of industrial and commercial applications.
The low-voltage VFD is intended for original equipment manufacturers, system integrators, and facility teams working with equipment such as conveyors, fans, pumps, and general machinery. According to LS ELECTRIC, the G100 is designed to allow users to standardize around a single drive family while accommodating different motor-control needs.
The G100 combines a compact mechanical design with features intended to simplify installation and operation. Most models include a built-in EMC filter to reduce electrical noise and support applicable standards, although 200 V models are offered without the integrated filter.
The drive is designed to UL 61800-5-1 requirements and includes a Safe Torque Off, or STO, function. The safety feature allows torque to be removed from the motor without disconnecting the main power supply, providing an additional option for incorporating safer stopping functions into machinery and equipment.
For agricultural and other operations relying on pumps, fans, conveyors, and similar motor-driven equipment, variable frequency drives can provide greater control over motor speed and operation rather than requiring equipment to continuously operate at full speed.
The G100 supports both Heavy Duty and Normal Duty operation, allowing it to handle constant-torque and variable-torque loads. LS ELECTRIC says its motor-control algorithms are designed to provide strong starting performance and stable speeds.
The series also includes sensorless vector control, which can provide higher torque at low speeds without requiring an encoder. That capability can be useful for equipment requiring more precise motor performance under changing loads.
Installation was also a focus in the G100’s design. Compact dimensions and DIN-rail mounting can reduce the amount of panel space required, while an optional conduit box provides another option for protecting wiring connections. A speed potentiometer incorporated into the keypad allows operators to make manual adjustments during setup and maintenance.
Flexible I/O, analog inputs, and programmable relays allow the G100 to connect with PLCs, sensors, and building automation systems. The drive also includes what LS ELECTRIC calls an “Advanced User Sequence,” which provides basic PLC functionality within the drive itself. Users can configure the feature through LS ELECTRIC’s DriveView9 software and multi-function digital input terminals.
Integrated PID control further allows the drive to regulate variables such as pressure or flow, potentially reducing the need for additional external control components in applications such as pumping and ventilation systems.
LS ELECTRIC America is part of South Korea-based LS ELECTRIC, which manufactures automation and power-distribution equipment for industrial, infrastructure, and commercial applications.
Facts Only
* LS ELECTRIC America highlights the G100 General AC Drive.
* The G100 is a compact variable frequency drive for flexible motor control in industrial and commercial applications.
* The target users are original equipment manufacturers, system integrators, and facility teams working with equipment such as conveyors, fans, pumps, and general machinery.
* The G100 is designed to allow standardization around a single drive family while accommodating different motor-control needs.
* Most models include a built-in EMC filter to reduce electrical noise.
* 200 V models are offered without the integrated EMC filter.
* The drive is designed to UL 61800-5-1 requirements and includes a Safe Torque Off (STO) function.
* STO allows torque removal without disconnecting the main power supply.
* The G100 supports both Heavy Duty and Normal Duty operation, handling constant-torque and variable-torque loads.
* Motor-control algorithms provide strong starting performance and stable speeds.
* The series includes sensorless vector control for higher low-speed torque without encoders.
* Installation features include compact dimensions and DIN-rail mounting.
* Flexible I/O, analog inputs, and programmable relays allow connection with PLCs and building automation systems.
* Integrated PID control regulates variables like pressure or flow.
Executive Summary
LS ELECTRIC America highlights the G100 General AC Drive, a compact variable frequency drive for flexible motor control in industrial and commercial settings. The drive is targeted at original equipment manufacturers, system integrators, and facility teams working with equipment like conveyors, fans, pumps, and general machinery. The G100 aims to allow users to standardize around a single drive family while accommodating diverse motor control requirements.
The design emphasizes compactness and ease of use, featuring features to simplify installation and operation. Most models include a built-in EMC filter for noise reduction, though 200 V models lack this filter. Safety features include a Safe Torque Off (STO) function, allowing torque removal without disconnecting the main power supply. The drive supports both Heavy Duty and Normal Duty operations with motor-control algorithms designed for strong starting performance and stable speeds.
The G100 offers advanced control capabilities, including sensorless vector control for higher low-speed torque without encoders, integrated PID control for regulating variables like pressure or flow, flexible I/O, and an "Advanced User Sequence" for basic PLC functionality configurable via software. Installation considerations include compact dimensions, DIN-rail mounting, optional conduit boxes, and a speed potentiometer. The company is part of LS ELECTRIC, a South Korea-based manufacturer of automation equipment.
Full Take
The narrative positions the G100 as a solution for industrial flexibility, marrying mechanical compactness with sophisticated control features. The emphasis on standardization around a single drive family suggests an attempt to reduce complexity and procurement hurdles for system integrators, which is a significant operational benefit in complex infrastructure projects. The inclusion of safety features like STO speaks directly to the growing necessity for inherently safer machinery design, moving control from purely functional aspects to safety imperatives.
The simultaneous provision of both Heavy Duty and Normal Duty capabilities, alongside sensorless vector control, suggests a strategy to broaden market applicability—addressing high-torque demands while optimizing performance for variable loads, particularly in agricultural or pumping contexts. This points toward an underlying pattern of providing modular solutions that address evolving operational constraints rather than just incremental efficiency gains. The focus on integrated features like PID and basic PLC functionality within the drive itself signals a move toward intelligent, self-contained control modules, potentially reducing the dependency on external, disparate control systems.
The structure subtly addresses the tension between high performance (torque, speed stability) and ease of deployment (compactness, standardized installation). The implication is that true industrial advantage lies not just in the raw drive capability but in how seamlessly complex safety standards, variable load management, and system integration requirements are packaged. The question remains whether this approach fosters genuine cognitive sovereignty by empowering the end-user to optimize these trade-offs or simply introduces another layer of vendor-specific complexity built around an integrated package.
