The most sophisticated AI algorithm in the world cannot compensate for fragmented data, absent governance, or siloed infrastructure.
AI has captured the attention of every boardroom and engineering team in the semiconductor industry. The promise is real: smarter fabs, fewer defects, faster time-to-market, and a meaningful edge in one of the most capital-intensive and competitively unforgiving industries on earth. But promise and execution are two very different things. And right now, the gap between them is costing companies dearly.
This post distills the core argument from our ASMC 2026 tutorial: AI success in semiconductors is structural, not algorithmic. The right model matters far less than the right foundation. And building that foundation demands a clear-eyed view of where most organizations stand today, and a deliberate, phased path forward.
More than 70% of AI initiatives in semiconductor manufacturing fail to scale beyond the pilot phase. The culprits are well-known but persistently underestimated: fragmented data across legacy systems, siloed organizations, limited subject matter expert (SME) bandwidth, and the absence of any coherent operating model for enterprise-scale AI deployment.
The cost dynamics are sobering. AI-enabled data integration projects routinely exceed $10–15 million for deployment. When legacy equipment meets modern systems, cost overruns of 40–60% above initial budgets are commonplace. A single “gigafab” generates 15,000 sensor readings and 95 gigabytes of equipment data every minute, and that data is largely disconnected, inconsistently labeled, and poorly governed.
Meanwhile, the talent pipeline is under strain. Roughly 80% of U.S. graduates with a master’s degree in semiconductor engineering leave the country. In APAC, 90% of companies rate talent acquisition as a top priority, according to Deloitte’s 2025 research.
The industry cannot hire its way out of this problem. It has to engineer its way through it.
The good news: the return on investment is there when the foundations are in place. Companies that have successfully integrated their data infrastructure are seeing 15–25% improvements in defect detection, up to 30% reduction in wafer costs, up to 50% reduction in cycle times, and a 25–30% acceleration in the delivery of AI-driven insights. The ROI typically spans 3–5 years, a timeline that demands organizational patience and sustained leadership commitment.
Before any organization can plot a path forward, it needs an honest diagnosis of its current maturity. The analytics maturity curve in semiconductor manufacturing runs from Descriptive (what happened?) through Diagnostic (why did it happen?) to Predictive (what will happen?) and finally Prescriptive (how do we make it happen?).
The uncomfortable truth: most semiconductor companies sit in the middle tier, competent at business intelligence and correlation analysis, but not yet extracting real foresight from their data. The leap from “insight” to “foresight” is not primarily a modeling problem. It is a data infrastructure problem.
It’s tempting to import AI playbooks from adjacent industries. Resist that temptation. Semiconductor manufacturing is different in four dimensions for AI deployment:
These constraints do not make AI impossible in semiconductors, but make a thoughtful, layered implementation approach essential.
See: “The Next Competitive Advantage in Semiconductors Won’t Be Capacity Alone — It Will Be Intelligence” by Meng Kuang Koh, CEO and CTO of AURABOT.

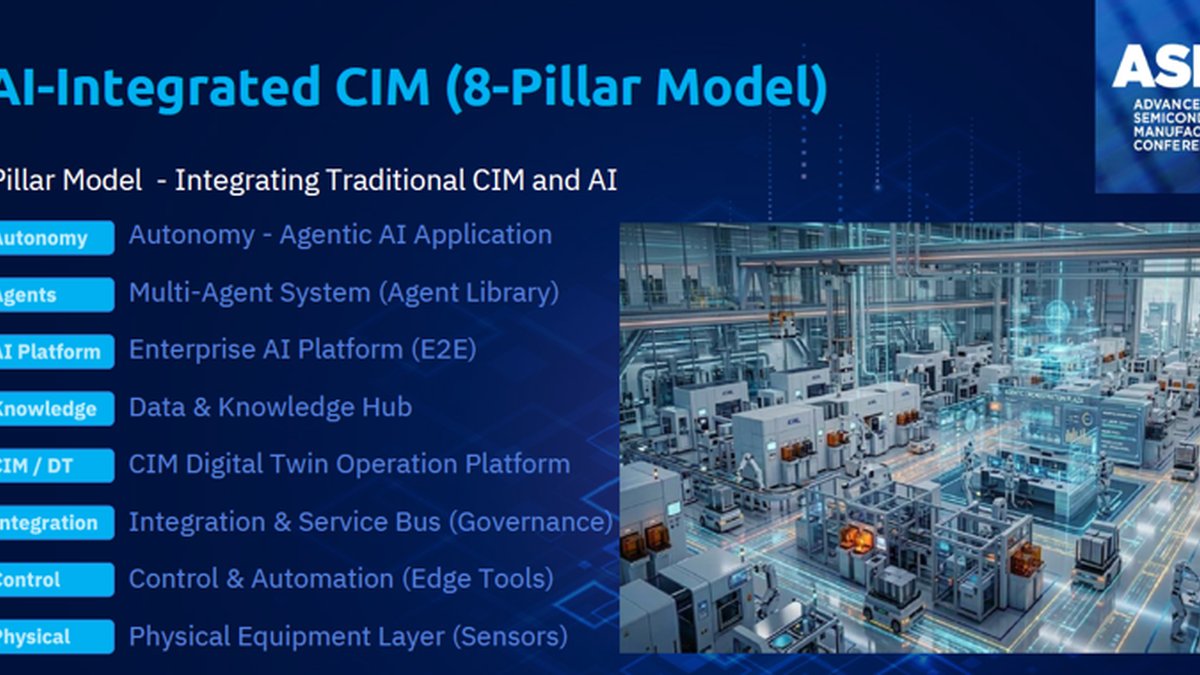

The path from experimentation to execution is best understood through an 8-pillar model that integrates traditional Computer Integrated Manufacturing (CIM) with modern AI capabilities. These pillars are not sequential steps. They are interdependent layers. True autonomy only emerges when all eight are functioning and connected.
Everything starts here. High-fidelity data capture from tools and processes is the foundation on which all subsequent AI depends. This means SEMI standards-compliant interfaces (SECS/GEM/GEM300, EDA/Interface A), OPC-enabled subsystems, and purpose-built custom interfaces for specialized equipment like EUV systems. Without reliable, standards-based data acquisition, no amount of sophisticated modeling downstream will compensate.
The analogy is apt: SEMI standards are oxygen for this industry and what make interoperability possible across thousands of tool types, vendors, and generations of equipment.
Fault Detection and Classification (FDC) has been foundational to semiconductor manufacturing since the late 1990s, evolving from early Endpoint Monitoring Systems embedded in plasma etchers. Today, the opportunity is to move beyond static SPC alarms toward dynamic, ML-enhanced classification engines that automatically adjust limits after preventive maintenance events, drive corrective action protocols (OCAPs), and enable sophisticated tool matching across fleets.
Run-to-Run (R2R) control, both feed-forward and feedback, remains the workhorse of advanced process control. The modern imperative is integrating AI into these control loops to enable adaptive, real-time process optimization that goes beyond what rule-based systems can achieve.
This is where many AI programs die. The integration layer connecting factory equipment, fab systems, and enterprise applications through event-driven architectures and governed service buses is unglamorous, expensive, and frequently underinvested.
The operational challenges are real: manual “last mile” handoffs that delay model deployment, engineering time wasted on custom data pipelines rather than analysis, and poor lineage between production models and training parameters that makes debugging slow and reproducibility difficult.
The right architecture here is a platform approach: a common data and logical model for products and assets; governed connectivity from shop floor to top floor; and an AI-ready manufacturing data repository that enables decisions, not just reporting.
A digital twin is a live, semantic representation of the physical fab, equipment state, lot location, process history, and operational context, updated in real time. It is the AI backbone: the unified state that enables simulation, what-if analysis, scheduling optimization, and closed-loop learning.
The analogy here is instructive. Roads are physical infrastructure; digital maps are their twins. Applications built on that map, navigation, logistics, ridesharing, create massive economic value. The fab is the road. The digital twin is the map. The AI applications built on top are where value is realized.
Digital twin operations management spans factory planning, scheduling, and real-time dispatching, each with distinct objectives, frequencies, and optimization approaches. The integration of these layers, supported by AI agents, is where next-generation factory intelligence lives.
Data must be treated as a product with clear ownership, defined consumers, documented quality standards, and lineage traceability. The semantic data model underpinning a modern Knowledge Hub spans the full silicon lifecycle: IC design, fab, sort, assembly, final test, system, and enterprise tiers.
This means moving from centralized IT ownership to domain ownership, where the engineers closest to the process are accountable for their data products. It means creating a governed, searchable data marketplace where insights can be discovered and reused. And it means the “unglamorous work” of data cleaning and standardization gets the organizational priority it deserves, because dirty data does not just slow AI adoption; it actively produces wrong answers with confident-sounding outputs.
The productivity dividend is significant: organizations that modernize their data strategies are seeing 30% reductions in redundant storage and effort.
Getting models into production is only half the problem. Keeping them there, monitored, governed, retrained as process conditions drift, and version-controlled through their full lifecycle, is where MLOps and ModelOps earn their value.
The key failure modes at this layer are familiar: deployment bottlenecks from manual integration processes, data friction that burns engineering cycles on pipelines rather than problems, and governance gaps that leave production models disconnected from their training lineage.
A mature MLOps platform enables automated data preparation and model creation, automated deployment, continuous monitoring, staged real-time data access, and model retraining and replacement, all governed through clear accountability structures. The business impact is compounding: automation accelerates deployment, and ongoing management sustains value in production over time.
Here is where the semiconductor-specific nature of the problem comes back into sharp focus. Generic AI models trained on general-purpose data are not fit for advanced manufacturing. The models that work in production fabs are domain-aware, embedding physics priors, process constraints, and hard operational limits directly into the model architecture. The result: fewer false positives, more engineer trust, and adequate performance even with limited labeled training data.
The spectrum runs from white-box first-principles models (fully physics-driven, fully interpretable) through physics-informed machine learning (hybrid physics and data) to black-box AI techniques (data-driven, high capacity). The most effective production deployments combine these approaches intelligently rather than defaulting to one extreme.
At the leading edge, agentic AI introduces a qualitative shift. AI agents are not passive responders. They are active workflow participants that plan tasks, call tools, manage state, and iterate through feedback loops. Multi-agent systems take this further: role-based domain agents sharing context and memory, orchestrated toward complex, multi-step objectives.
For semiconductor manufacturing, high-value agentic applications include automated yield diagnosis (agents analyzing wafer maps and final test data to identify defect root causes without human intervention), predictive maintenance orchestration (beyond threshold alarms to integrated maintenance scheduling and workflow rerouting), and intelligent supply chain management. The key differentiator of truly agentic systems is the ability to learn and improve through feedback loops, enabling continuous refinement rather than one-time deployment.
Human-in-the-loop governance is not optional at this stage. It is the mechanism through which trust is built, model quality is validated, and the transition to greater autonomy is managed safely.
The destination, not the starting point, is a closed-loop, increasingly autonomous manufacturing environment where AI agents execute decisions within defined guardrails, escalate appropriately, and progressively expand their operational scope as trust is established.
The numbers tell a compelling story: companies piloting agentic AI in manufacturing are projected to grow from 25% to 50% between 2025 and 2027. Early adopters in industrial operations with AI are realizing 14% savings. By 2030, an estimated 30% of work hours in manufacturing will be automated.
The practical path to this future is disciplined: start with high-value, data-rich use cases where decisions are repetitive, and the cost of manual errors is measurable. Demonstrate ROI. Iterate. Standardize. Then scale.
If there is a distillation of everything in this framework, it comes down to three commitments that leadership must own:
IDC projects that by 2029, AI automation will touch approximately 80% of manufacturing workflows. The companies that will lead the next decade of semiconductor manufacturing are not those with the most ambitious AI roadmaps on paper. They are the ones building structural foundations that make sustained AI execution possible, including data, integration, digital twins, governance and domain-aware models.
The hype cycle in AI is real, and the semiconductor industry has seen enough technology waves to know the difference between a trend and a transformation. This one is a transformation. But transformations are not delivered by algorithms. They are delivered by organizations that build the right foundations, earn the trust of their engineers, and scale with discipline.
The 8-pillar model is a blueprint. The work of building it starts now.
Note: This blog post is based on “From Hype to Implementation: Building the Core Pillars for AI in Semiconductors,” a tutorial presented at ASMC 2026.
