Tesla’s Wall Connector needs additional hardware to take advantage of all the installed power. Schneider includes it in the box.
- Schneider Electric launched a new smart Level 2 EV charger in the U.S. and Canada.
- The Schneider Charge delivers up to 11.5 kW and can be bought with either a NACS or J1772 connector.
- The connected charger competes with Tesla’s Wall Connector, which needs extra hardware to enable load management.
Schneider Electric is now selling a new home EV charger that can max out the installed power capacity of a house without tripping any breakers inside the main panel. That’s because the Schneider Charge comes with a pair of current transformer (CT) clamps in the box, enabling homeowners to enjoy dynamic load balancing from the get-go.
With dynamic load balancing, an EV charger can use whatever power is available from the main panel. So, if the main breaker is rated for 200 amperes and the house is already using 160 amps, the EV charger can deliver the remaining current to the car, as long as the total consumption doesn’t go over the safety limit. If the current draw of the household goes down to 100 amps, then the EV charger can use the extra amps to top up the car’s battery even faster.
The concept is nothing new, but Schneider Electric has decided to bundle the necessary hardware from the start. By comparison, Tesla’s ubiquitous Wall Connector needs an additional Remote Meter to enable dynamic load balancing, which costs $210 on its own. Add the $535 for the charger itself, and you’re looking at a $745 bill for the hardware alone.
Meanwhile, the Schneider Charge retails for $695, making it a great option for homeowners who don’t have the luxury of a high-powered mains connection. It can output up to 11.5 kilowatts at 48 amps and has a compact enclosure that can be mounted indoors or outdoors, just like Tesla’s Wall Connector. Customers can choose between a NACS or a J1772 connector when ordering, and there’s also a smartphone app for scheduling and managing charging.
The included CT clamps need to be hardwired to the charger’s main board, which means a set of additional wires needs to be traced from the main panel to the charger. That’s not an issue when the charger is right next to the main panel, but it could prove problematic when the two units are in opposing corners of a property.
By comparison, the optional Tesla Remote Meter communicates wirelessly with the Wall Connector, making installation a little easier. What’s more, if one doesn’t need dynamic load balancing, Tesla’s charger is still one of the best options out there.
For now, Schneider Electric’s new Level 2 EV charger is only available as a hardwired model, with a 25-foot cable, but the company said that a plug-in version is coming early next year.

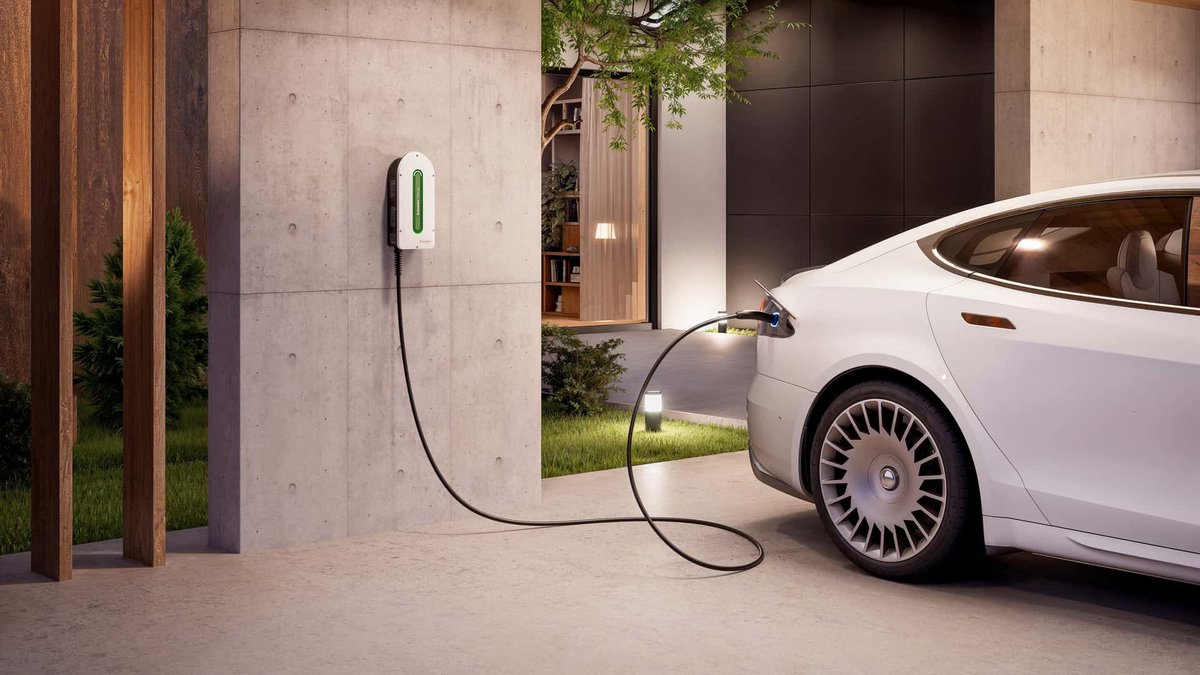

Gallery: Schneider Charge Level 2 EV Charger
RECOMMENDED FOR YOU
What The World's EV Capital Can Teach Us About Fast Charging
Ford’s $30,000 Fathom EV Truck Appears More Conventional Than Promised
Does Ultra-Fast Charging Ruin An EV Battery? BYD Did It 350 Times In 9 Days To Find Out
Kia’s Bigger Electric Van Looks Ready For More Than Just Deliveries
More EV Owners Can Now Get Paid To Power California’s Grid
This Study Covered 500,000 EV Batteries. Some Models Aged Much Better Than Others
Walmart's EV Charging Network Just Hit A Big Milestone: 100 Stations In 20 States
Facts Only
* Schneider Electric launched a new smart Level 2 EV charger in the U.S. and Canada.
* The Schneider Charge delivers up to 11.5 kW and accepts NACS or J1772 connectors.
* The Schneider Charge includes current transformer (CT) clamps in the box for dynamic load balancing.
* The Schneider Charge allows EV charging to use available power without tripping main panel breakers.
* Tesla’s Wall Connector requires an additional Remote Meter to enable dynamic load balancing.
* The Tesla hardware setup costs approximately $745 when including the charger and the required meter ($535 for the meter plus $535 for the charger).
* The Schneider Charge retails for $695.
* The Schneider Charge can output up to 11.5 kilowatts at 48 amps.
* The Tesla charger is available in a plug-in version and has an optional remote meter.
* The new Level 2 EV charger from Schneider Electric is currently available as a hardwired model with a 25-foot cable.
Executive Summary
Schneider Electric has introduced a new smart Level 2 EV charger called the Schneider Charge in the U.S. and Canada, which offers up to 11.5 kW charging capability and accepts either NACS or J1772 connectors. A key feature is that the charger includes current transformer (CT) clamps within the box, allowing for dynamic load balancing by utilizing available power from the main panel without tripping breakers. This contrasts with Tesla’s Wall Connector, which requires an additional Remote Meter to enable similar load management, adding significant cost. The Schneider Charge retails for $695 and can output up to 11.5 kW at 48 amps, featuring a compact enclosure suitable for indoor or outdoor mounting and a smartphone app for management.
The core distinction lies in the bundling of necessary hardware; the Schneider offering incorporates the means for dynamic load balancing directly into the unit. While the dynamic load balancing concept is not new, the cost disparity in achieving this functionality differs significantly between the two systems. The required additional components for Tesla’s system, such as the Remote Meter, increase the total hardware cost substantially compared to the bundled approach by Schneider Electric. Installation complexity also varies, with the optional Tesla setup involving wireless communication, whereas the Schneider solution requires hardwiring the CT clamps and tracing wires from the main panel.
Full Take
The narrative centers on the trade-off between integrated functionality and modularity in energy infrastructure design. The core pattern observed is the strategic bundling of necessary components to deliver a specific feature—dynamic load balancing—at a different cost structure. Tesla relies on an add-on hardware component (Remote Meter) for this capability, positioning dynamic management as an optional enhancement, whereas Schneider Electric integrates it directly into the core product, suggesting a paradigm where advanced energy management is the default rather than an accessory. This distinction forces a re-evaluation of what constitutes "full functionality" in EV charging hardware. The implication is that the complexity and cost associated with achieving efficiency should be embedded by default, shifting the burden from the end-user to the manufacturer for system integration.
The structure subtly pressures the reader to weigh immediate cost against long-term operational flexibility and installation friction. While the bundled approach saves money upfront in this comparison, it introduces a potential constraint on future upgrades or compatibility with non-standard setups (like opposing corners where wiring is problematic). This highlights a tension between economic incentive (lower initial price) and technical implementation feasibility (physical installation constraints). The absence of an immediate hardline solution for the plug-in version suggests a slower rollout of integrated systems, allowing competitors time to establish market share based on established, albeit less efficient, modular solutions.
What are the unseen costs imposed by this bundling? If dynamic load balancing proves critical for grid stability or future residential demands, the initial cost savings achieved by embedding the CT clamps might be outweighed by unforeseen complexities in wiring or system maintenance. Furthermore, the narrative contrasts a solution that appears simpler and cheaper now with one that imposes potential physical installation hurdles later on, prompting inquiry into whether true value lies in feature integration or component separation.
Sentinel — Human
The text reads like standard, comparative industry reporting, focusing on feature bundling and cost implications between two competing EV charging systems.
