Semiconductor R&D depends on access to high-quality data, realistic process assumptions, and practical learning from silicon.
As semiconductor technologies become more complex, competitive advantage increasingly depends on access to realistic development environments, silicon learning, and high-quality data. Turning research breakthroughs into production-ready solutions requires more than innovation alone—it requires the ability to validate ideas quickly and refine them against real-world conditions. Research organizations, foundries, equipment suppliers, software providers, and chip developers are working together earlier and more closely to evaluate new technologies, accelerate learning, and reduce the risks associated with bringing innovations into production.
The long-standing collaboration between imec and Synopsys provides one example of how this model works in practice.
Imec is one of the semiconductor industry’s leading research and innovation hubs, bringing together ecosystem partners to explore future process, packaging, and system technologies. Its position at the intersection of research, technology development, and ecosystem collaboration gives partners access to development environments, technical perspectives, and silicon learning that are difficult to replicate independently.
Synopsys provides engineering solutions from silicon to systems, including design, IP, simulation, and analysis technologies used by semiconductor developers. Its customers create chips for demanding applications such as AI, data center, mobile, automotive, and aerospace. Synopsys began partnering with imec on 3D-IC technologies in 2010, and the collaboration has since expanded into areas such as deep submicron geometries and models, technology computer-aided design (TCAD), and semiconductor lithography.
The value of the collaboration comes from the complementary strengths each organization brings. Imec contributes deep semiconductor research expertise, leading-edge development environments, process assumptions, and silicon data that are difficult to access elsewhere. Synopsys contributes broad software, modeling, and engineering expertise developed through close work with customers and partners across the semiconductor ecosystem.
Access to leading-edge development environments, process assumptions, and silicon data enables Synopsys engineers to evaluate and validate emerging ideas earlier, refine solutions more quickly, and pursue advances that would be much more difficult—or much slower—to achieve independently.
Semiconductor R&D depends on access to high-quality data, realistic process assumptions, and practical learning from silicon. Customer partnerships provide valuable insight into real-world challenges, while foundry relationships help clarify the constraints of manufacturing. However, confidentiality can limit access to full data sets. Collaboration with imec complements in-house research at Synopsys by expanding the development platforms, silicon learning, and technical perspectives available to engineering teams.
This broader technical foundation supports earlier exploration of future technologies, including high-numerical-aperture extreme ultraviolet (high-NA EUV) lithography. It also provides valuable real-world tape-out experience that supports early debugging and refinement of optical proximity correction (OPC) and inverse lithography technology (ILT) solutions at advanced nodes.

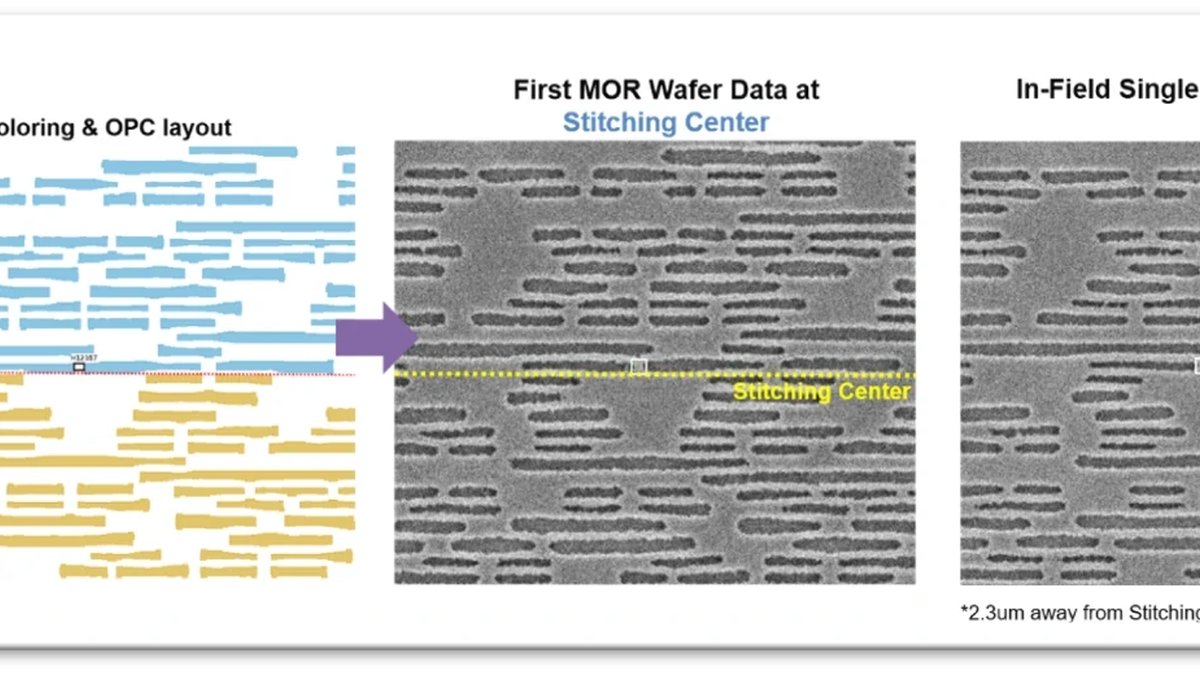

Fig. 1: Experiment demonstrating the high NA EUV stiching flow at imec, with a single-exposure area pattern shown for refence.
Precision manufacturing at advanced nodes depends on the ability to connect design, process, lithography, metrology, materials, and equipment expertise early enough to influence development decisions. The challenge is not only solving individual technical problems but also validating solutions against realistic process assumptions and manufacturability requirements before they move closer to production.
The imec-Synopsys collaboration helps address this need by connecting research learning with production-oriented tool development. Joint activities span multiple domains, from design-technology co-optimization (DTCO) and TCAD to OPC and advanced lithography development. Work in these areas helps accelerate learning, improve manufacturability, and ensure that solutions meet the performance and precision requirements needed for successful high-volume production.
At different points in the semiconductor industry’s history, major applications have shaped the direction of innovation, from mainframes and memories to servers, data centers, and mobile devices. Today, AI is one of the strongest drivers. AI chips place intense demands on performance, power, cost, density, and manufacturing precision, increasing the need for tighter coordination across design, process development, manufacturing, and advanced packaging.
This pressure is pushing the ecosystem toward earlier and deeper collaboration, with companies working together from technology exploration through volume production. Success increasingly depends on shared innovation, faster feedback loops, and strong partnerships across the supply chain. The work that IMEC and Synopsys are doing together reflects this more integrated model of semiconductor innovation.
Advanced lithography for high-NA EUV provides a clear example of why access to real-world development environments matters. By combining IMEC’s process insight, experimental data, and real-world development environment with Synopsys software and modeling expertise, the collaboration has helped accelerate solution development and qualification.
This work has supported advances in areas such as source-mask optimization (SMO), ILT, OPC, and modeling. By working closely with imec, Synopsys engineers can evaluate ideas earlier, compare results against realistic data, and move with greater confidence as new patterning challenges emerge. The collaboration helps turn research insight into practical capabilities for future semiconductor manufacturing.
As semiconductor development becomes more tightly connected across research, design, process technology, manufacturing, and packaging, the ability to validate ideas against realistic data and production-relevant assumptions is becoming increasingly important. The imec-Synopsys collaboration shows how ecosystem partnerships can help close the gap between early research insight and practical semiconductor manufacturing solutions, supporting faster learning, earlier validation, and more confident development of technologies needed for future semiconductor manufacturing. Learn more about Synopsys manufacturing solutions.
