Transporting the native packetized traffic of the NoC directly across die boundaries using a stable, invariant interface.
The semiconductor industry is rapidly transitioning from monolithic SoCs to chiplet-based architectures. At the same time, AI workloads are evolving beyond cloud inference into physical AI: systems that perceive, reason, and act in the real world. Autonomous vehicles, industrial robots, humanoid robots, drones, and intelligent manufacturing systems all require continuous, high-volume data flow between heterogeneous compute engines.
However, these two trends expose a weakness in today’s die-to-die communication architectures. While coherent interconnect protocols have been highly successful for processor-centric systems, they are fundamentally mismatched to the traffic patterns generated by modern AI accelerators.
As a result, a new approach is needed that involves transporting the native packetized traffic of the NoC directly across die boundaries using a stable, invariant interface.
Traditional processors are dominated by memory accesses, synchronization, and cache coherence. Physical AI systems are different. A modern automotive compute platform may simultaneously execute:
Rather than exchanging individual cache lines, these engines often exchange continuous streams of feature maps, tensors, point clouds, video frames, and intermediate inference results. These data streams often consist of hundreds of kilobytes, or even megabytes, moving between specialized accelerators at deterministic rates. The communication pattern resembles a high-performance dataflow network more than a coherent symmetric multi-processor system. As physical AI systems become more capable, the amount of accelerator-to-accelerator traffic continues to grow faster than CPU-to-memory traffic.
Coherent die-to-die protocols remain the right solution for many applications and perform exceptionally well for:
These protocols were designed to maintain memory consistency while moving relatively small cache-line-sized transactions. For processor-centric workloads sharing memory, they are extremely effective.
Accelerator traffic follows very different patterns. Most coherent protocols divide communication into cache-line-sized transactions, typically 64 bytes each. Every cache line carries protocol overhead, including:
When transferring large tensors or feature maps, this overhead must be repeated thousands of times. For AI workloads, the actual payload accounts for only a portion of the transmitted bandwidth, with protocol overhead consuming an increasingly significant fraction of the available die-to-die bandwidth.
Some coherent protocols have added optimizations to help improve the efficiency of non-coherent, bursty traffic. While useful, these mechanisms are limited in scope. For example, they span only a small number of beats and cannot fully ameliorate the overhead associated with very long streaming transfers of arbitrary data. As accelerator bandwidth increases into the terabytes-per-second range inside future automotive AI systems, repeatedly transmitting cache-line metadata becomes increasingly difficult to justify.
Many non-coherent die-to-die approaches have been proposed, including:
These approaches extend AXI interfaces across die boundaries and work well for connecting peripherals and control-oriented IP. However, they still operate at the transaction layer. Each NoC packet of each virtual channel must be converted into AXI transactions before crossing the die boundary, then reconstructed as NoC packets on the receiving side. As systems scale to dozens of AI engines across multiple chiplets, this repeated conversion adds unnecessary latency, buffering, and implementation complexity.

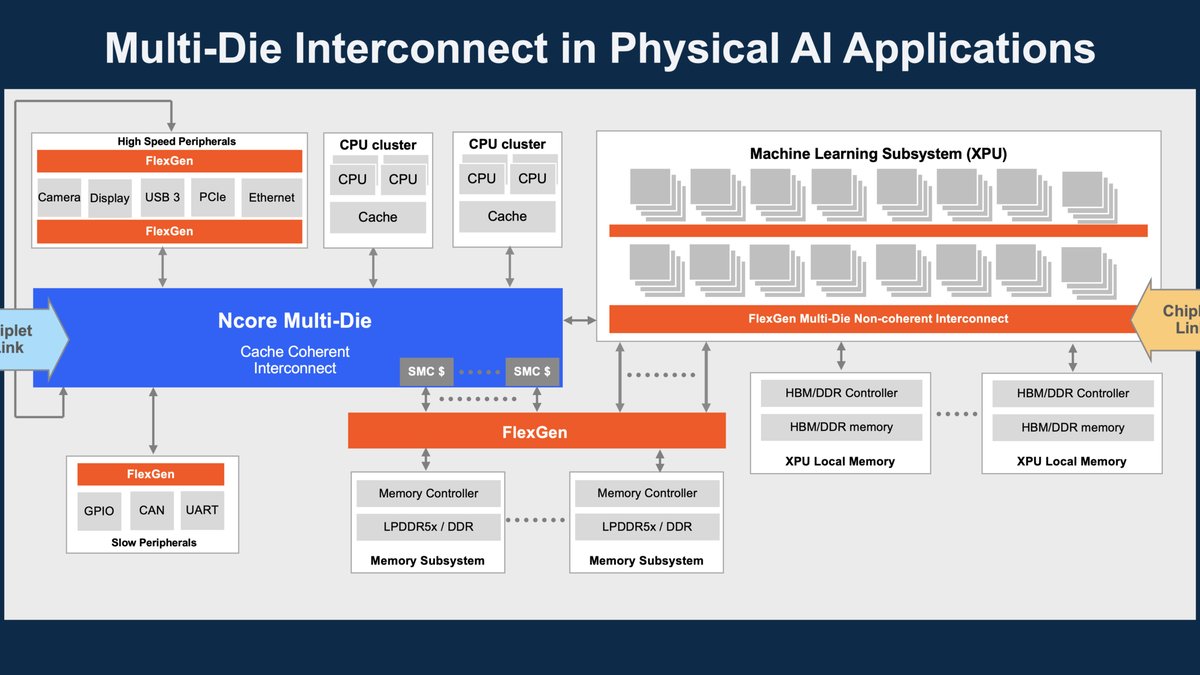

Fig. 1: Multi-die interconnect in physical AI applications. Source: Arteris, Inc.
A more natural architecture is to allow the NoC itself to span multiple dies. Instead of terminating the NoC at each chiplet boundary, native NoC packets are transported directly across the die-to-die interface. The remote die simply becomes another portion of the same logical network. This provides several important advantages:
Automotive AI places unique demands on interconnects. Unlike cloud AI systems, automotive platforms must satisfy strict latency, determinism, power, and functional safety requirements while operating within tight thermal limits. Centralized vehicle compute platforms will integrate multiple AI chiplets connected through advanced packaging technologies. Individual chiplets may specialize in:
The largest traffic flows are often not between CPUs and memory but between accelerators themselves. For example:
These are fundamentally streaming dataflow applications. Transporting these streams using a native packetized NoC enables far more efficient bandwidth utilization, while reducing latency and buffering throughout the system. The result is higher sustained throughput, lower energy consumption per transferred bit, and greater scalability as additional accelerator chiplets are added.
Despite these advantages, directly exposing an implementation’s internal NoC protocol is problematic. Internal packet formats frequently evolve as NoC implementations gain new capabilities, such as:
Even relatively small NoC changes can significantly alter the internal protocol, making long-term die-to-die compatibility challenging. Routing introduces another challenge. Packet routing information may depend on the topology of the destination NoC. If the topology changes, routing vectors or addressing schemes may need to be updated. Without architectural stability, every NoC revision risks requiring die-to-die interface updates. While this may be manageable when a single team designs all dies, it becomes impractical when teams work independently.
The solution is to define an invariant architectural interface, rather than exposing the evolving internal NoC implementation. An invariant, die-to-die NoC interface provides a stable packet protocol specifically designed for die-to-die transport while allowing each chiplet’s internal NoC implementation to continue evolving independently.
Such an interface can:
This enables chiplets from different product generations to communicate through a stable architectural interface, while allowing incremental change on either side of the die-to-die boundary.
We propose a multi-die NoC packet transport interface based on an invariant die-to-die NoC interface. Instead of transporting cache-line transactions or extending AXI buses, the interface carries native, protocol-independent NoC packets directly between chiplets using a stable, implementation-independent packet format. The interface can be sized to match the bandwidth requirements of future AI systems, supports virtual channels for efficient sharing among diverse traffic types, and extends NoC routing seamlessly across die boundaries.
For physical AI, particularly in next-generation automotive computing platforms, this approach aligns the communication architecture with the system’s dominant traffic pattern: high-bandwidth, low-latency accelerator-to-accelerator data movement. By eliminating unnecessary protocol translation and minimizing transaction overhead, it creates a scalable, multi-protocol, multi-die interconnect capable of supporting increasingly complex AI pipelines, while maintaining the determinism, efficiency, and long-term architectural stability required for safety-critical deployments.
Learn more about Arteris’ multi-die solution.
