Bond testing is emerging as a critical control point for long-term performance and yield.
As semiconductor devices continue to evolve, so too does the importance of the connections that hold them together. Beneath every advance in performance – whether enabling artificial intelligence, electrification, or next-gen connectivity – lies a dense network of interconnects, each one critical to ensuring that signals, power, and data flow reliably through ever-more complex architectures.
Yet as these interconnects shrink in size and multiply in number, they are also becoming one of the most significant points of vulnerability within the device. The demands placed on semiconductor manufacturing are escalating rapidly, but it is often the integrity of these microscopic connections that ultimately determines whether a device performs as intended – not just at the point of production, but over its entire operational life. As such, quality assurance is no longer simply about detecting visible defects or verifying assembly; it is about understanding, quantifying, and controlling the strength and reliability of the connections themselves.
As inspection technologies have advanced to keep pace with packaging complexity, the role of testing is evolving in parallel, complementing inspection by providing quantitative insight into interconnect integrity. At the wafer level, bond testing has long been used to verify interconnect strength, but is increasingly being leveraged to generate deeper process insight – supporting a more data-driven understanding of reliability.

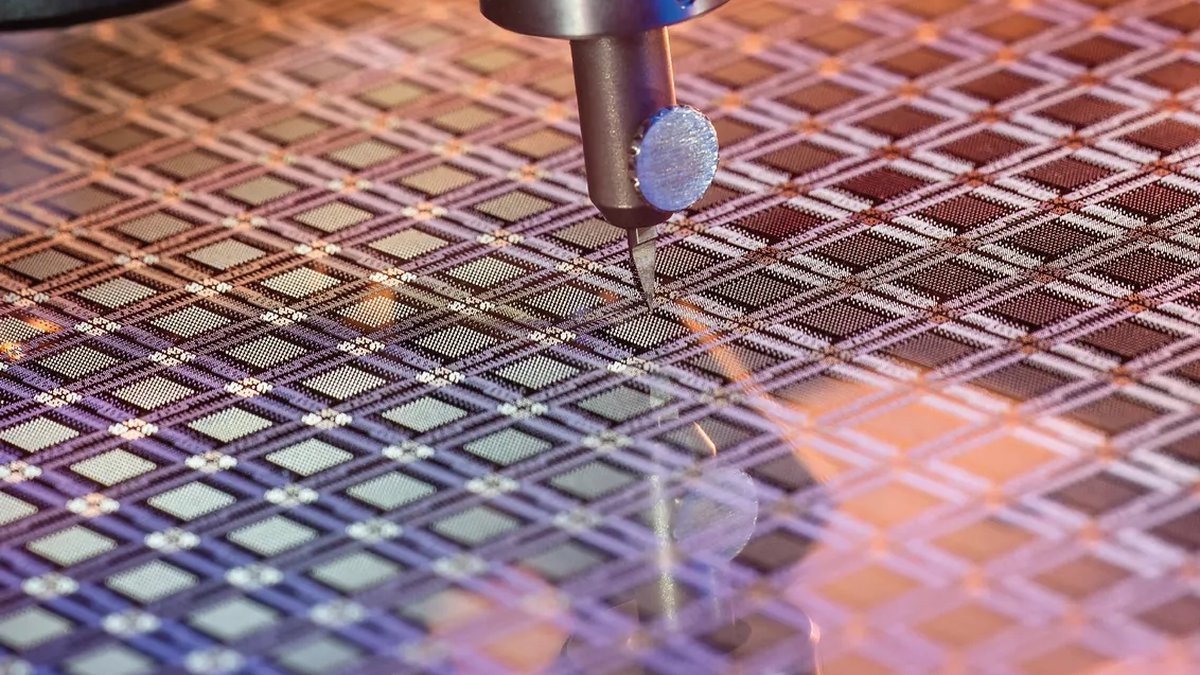

By applying controlled force, the process provides direct measurement of bond strength, enabling manufacturers to assess variation across the wafer and identify potential weaknesses early. The quality of these interconnects plays a direct role in how long a chip lasts – and is dependent on end use, whether a smartphone withstands the occasional drop or an EV continues to operate reliably day after day. As semiconductors move deeper into high-reliability applications such as automotive, aerospace, and industrial systems, the tolerance for failure is rapidly disappearing. A single weak bond can translate into field failures, safety risks, or costly recalls. At the same time, increasing scrutiny around product longevity and electronic waste is shifting focus toward durability from the outset, making bond testing a critical link between manufacturing precision and modern expectations for electronic devices and systems.
While ever more important as device architectures continue to scale, maintaining consistent bond integrity is conversely becoming significantly more difficult, driven by a convergence of structural, material, and production pressures.
At the device level, continued miniaturization is reducing interconnect dimensions to just a few microns, with more connections also being packed into increasingly smaller areas. With thousands – and in advanced devices, millions – of bumps distributed across a wafer, even small variations in materials, deposition, or process conditions can lead to inconsistencies in bond formation. At this scale, there is little tolerance for variation, yet greater potential for it to occur.
At the same time, advanced packaging is introducing more complex material interactions, particularly in fan-out wafer-level packaging (FOWLP), where wafer warpage can make accurate, repeatable measurement harder to achieve. Multi-layered 2D or 3D structures can likewise lead to uneven stress distribution and variations in how interconnects are formed and behave. These effects are often subtle, but they can have a direct impact on bond strength and long-term reliability.
Overlaying these challenges is the nature of bond testing itself. As a destructive process, it relies on sampling rather than 100% inspection, forcing manufacturers to balance the need for statistically meaningful data against the cost of sacrificing devices. This places greater importance not only on the accuracy of each individual measurement, but on how effectively those measurements are selected and tracked.
The ability to link each measurement to wafer coordinates, batches, and sample histories empowers manufacturers to pinpoint where issues originate and how they propagate through production. By linking bond strength data with failure details and wafer-level context, engineers can more rapidly identify root causes, refine process parameters, and accelerate new product development.
Achieving this level of insight is difficult to replicate with manual approaches, which is why automated, software-driven bond test platforms – and the additional layers of insight they can provide – are becoming central to modern semiconductor manufacturing.
From a broader perspective, the bond testing process increasingly aligns with the wider industry shift toward intelligent and software-defined production environments. The focus is shifting from individual measurements to how those measurements are generated, interpreted, and applied at scale – with automation and AI enabling even greater advances to throughput, uptime, and overall process performance.
One of the more persistent challenges for semiconductor fabs in wafer-level bond testing has traditionally been not in the measurement itself, but in how effectively that measurement represents the process as a whole. When handling more complex devices, capturing data that truly reflects underlying variation becomes significantly more difficult. Historical static or manually defined sampling strategies now struggle to keep pace with this level of complexity, and in response, more advanced approaches such as wafer mapping and matrix-based selection, as built into our own test systems here at Nordson, are enabling a shift toward dynamic, context-aware sampling. With the ability to target specific die, regions, or known areas of risk, the result is not simply more efficient testing, but more meaningful data, better aligned to the realities of modern semiconductor production.
Critically, in a global environment where labor shortages remain a persistent challenge, automation is also helping manufacturers reduce reliance on manual operator input. In some cases, following the installation of our automated systems, our own Nordson customers have been able to eliminate manual operators entirely. More broadly, embracing automation helps minimize variability and deliver more consistent execution across high-throughput environments. By standardizing how tests are performed and recorded, modern platforms also provide a more stable, repeatable foundation for reliable data generation.
Similarly, AI is beginning to unlock the next wave of efficiency and insight. Our own bond testing system, the BT4800 INTEGRA Plus, not only delivers detailed failure data, but underpins this with Nordson Intelligence, for AI-powered failure mode grading capabilities that help assess and classify failures with speed and consistency. Because the system can learn from customer-specific examples, it offers the flexibility to adapt quickly to different production environments. The result is faster interpretation, more repeatable analysis, and earlier visibility into emerging process risks.
As semiconductor devices continue to scale in complexity and application criticality, ensuring consistent interconnect integrity has become a defining requirement for both performance and long-term reliability. Within this landscape, bond testing is evolving beyond its traditional role as a mechanical verification step, becoming a more strategic source of process insight and control.
Looking ahead, this shift is only set to intensify. As fine-pitch bonding advances, manufacturers will need to evaluate ever-smaller bumps and copper pillars – in some cases below 12µm in diameter and at pitches of around 25µm – placing even greater emphasis on precision. In turn, bond test systems will need to deliver exceptional accuracy across all three axes, alongside highly precise low-force measurement capable of evaluating progressively more delicate structures with confidence and repeatability.
At the same time, while the fundamentals of bond test metrology may remain unchanged, the broader requirements surrounding it are evolving rapidly. Back-end fabs are placing growing emphasis on remote control, limited human intervention, full traceability, and dynamic recipe adaptation, reflecting the wider push toward Industry 4.0. As a result, the value of bond testing will increasingly rest not only on the measurement itself, but on the intelligence, automation, and contextual data surrounding it. The platforms best positioned to support next-generation semiconductor manufacturing will therefore be those able to combine precision measurement with smarter sampling, robust traceability, and faster, more adaptive failure analysis. In that sense, bond testing is no longer simply a downstream checkpoint, but an active contributor to process optimization, manufacturing resilience, and confidence in device reliability.
