Lord Nelson’s Centenary

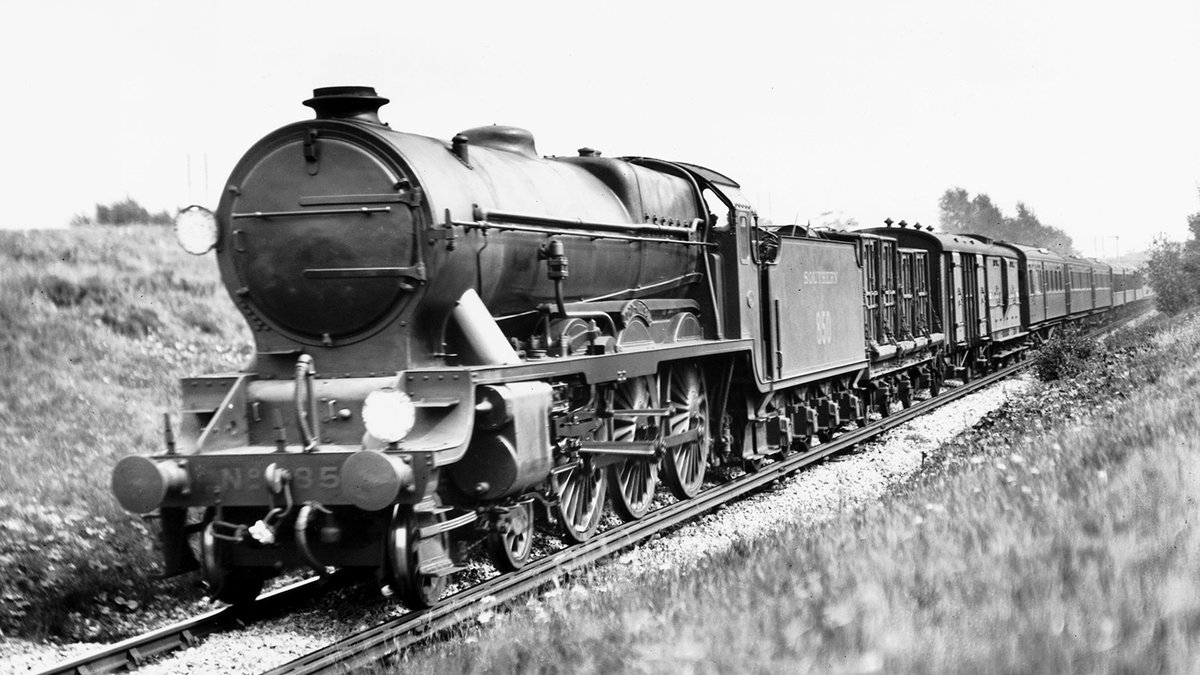

Richard Maunsell developed the Lord Nelson Class 4-6-0 locomotives for the Southern Railway to meet a specific requirement: pulling 500-ton Continental boat trains at 55mph while adhering to strict route weight restrictions. To achieve this, the design utilized high-tensile steel, a tapered boiler, and a unique 135-degree crank setting to improve torque and fire draught. While the prototype was the most powerful locomotive in Britain at its 1926 debut, the subsequent production run was limited to 16 units due to the 1929 economic depression.
The class demonstrated a successful balance of power and weight, influencing the development of the GWR 'King' Class and the LMS 'Royal Scot' Class. However, the locomotives suffered from a specific operational weakness: a long firebox that required specialized firing techniques, leading to poor steaming when operated by inexperienced crews. After post-war modifications and the introduction of more modern Pacific locomotives, the class was gradually relegated to minor duties and withdrawn between 1961 and 1962.

* Richard Maunsell designed the Lord Nelson Class 4-6-0 locomotives for the Southern Railway.
* The design goal was to pull 500-ton trains at 55mph within weight restrictions.
* The locomotives featured four cylinders and 6 foot 7 inch driving wheels.
* The cranks were set at 135 degrees.
* The boiler operated at a pressure of 220lb/psi.
* Prototype No. E850 Lord Nelson emerged from Eastleigh on 12 August 1926.
* The class had a nominal tractive effort of 33,500lb.
* A total of 16 locomotives were built.
* No. E859 Lord Hood was fitted with 6ft 3in driving wheels.
* Oliver Bulleid fitted Lemaître multiple jet blastpipes starting in 1938.
* The class passed into British Railways ownership in 1948.
* The final locomotive was taken out of service in 1962.

This text functions as a technical history, blending engineering specifications with institutional narratives of prestige. The strongest version of this narrative is that the Lord Nelson Class was a triumph of "constrained optimization"—achieving maximum power under strict weight limits—which acted as a catalyst for a competitive "arms race" among British railway companies.
The source utilizes ACADEMIC MODE, relying on extensive citations from specialized railway histories to ground its claims. The methodology is descriptive and retrospective; it does not provide raw performance data but synthesizes existing historical records. A peer reviewer would note that the claim regarding the influence on the LMS 'Royal Scot' is explicitly qualified as "unclear," which demonstrates a commendable commitment to intellectual honesty over narrative convenience.
The underlying paradigm is one of industrial evolution through competition. The "race for power" reflects a broader early-20th-century obsession with superlative engineering as a proxy for national or corporate prestige. The human cost here is reflected in the "Achilles' heel" of the design: the gap between engineering intent and operational reality. The locomotive was a success on paper and in trials, but its failure in the hands of "inexperienced crews" suggests a disconnect between the designers and the laborers who operated the machines.
Bridge Questions:
1. How did the specific firing techniques required for the long firebox differ from standard practice, and why was this training not standardized?
2. To what extent did the "prestige race" lead to over-engineering that ignored operational ergonomics?
Counterstrike Scan: An influence campaign would likely strip the nuance regarding the "poor steaming" and the limited production run to present the class as an unmitigated national triumph. The actual content avoids this by highlighting the design's flaws and the impact of the economic depression.
